Phylogenetic tree inference using Phylo2Vec#
We offer a few minimum examples for phylogenetic optimisation schemes using Phylo2Vec objects, including:
A hill-climbing scheme using Phylo2Vec vectors, with branch length optimisation using RAxML-NG
GradME, a continuous optimisation scheme based on a probabilistic version of Phylo2Vec.
0. Imports & data#
import os
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from ete4 import Tree
from urllib.request import urlretrieve
# To run the notebook here, we need to change the working directory
# to py-phylo2vec, which is the parent directory of the Python package.
os.chdir("../py-phylo2vec")
import phylo2vec as p2v
from phylo2vec.utils.newick import apply_label_mapping
All available optimisation schemes can be found using list_models
from phylo2vec.opt import list_methods
list_methods()
['GradME', 'HillClimbing']
As an example, we will look at a simple H3N2 dataset offered with the TreeTime package, available here.
# Change this if necessary
dataset_dir = "phylo2vec/datasets/data"
fasta_path = f"{dataset_dir}/h3n2_na_20_demo.fa"
urlretrieve(
"https://raw.githubusercontent.com/neherlab/treetime_examples/79eae7f8025a8ef3165c856c7359d92e738eb893/data/h3n2_na/h3n2_na_20.fasta",
fasta_path,
)
('phylo2vec/datasets/data/h3n2_na_20_demo.fa',
<http.client.HTTPMessage at 0x7fce2453b940>)
1. Hill-climbing#
A hill-climbing scheme for tree optimisation is described in the Phylo2Vec paper. The general idea is to sample a random index \(i\) of the vector, evaluate proposals (in [0, 2*i]), and pick the tree which has the largest change in likelihood compared to our current best. To avoid getting stuck in local optima, we perform random re-rooting operations to change equivalences without changing the likelihood.
The only required argument is model, a substitution model name (as a string).
from phylo2vec.opt import HillClimbing
hc = HillClimbing(model="GTR", verbose=True)
hc_result = hc.fit(fasta_path)
Changing equivalences...
Start step: 4128.975
/home/nclow23/src/phylo2vec/public_fork2/py-phylo2vec/phylo2vec/utils/vector.py:204: FutureWarning: `reorder_v` is deprecated and will be removed in a future version. Use `queue_shuffle` instead.
warnings.warn(
Loss: 4128.975 (diff: -0.000)
Loss: 4126.375 (diff: -2.600)
Loss: 4126.374 (diff: -0.001)
Loss: 4048.742 (diff: -77.632)
Loss: 4048.742 (diff: -0.000)
Loss: 3974.578 (diff: -74.164)
Loss: 3932.410 (diff: -42.167)
Loss: 3923.969 (diff: -8.441)
Loss: 3919.187 (diff: -4.782)
Loss: 3919.187 (diff: -0.000)
Loss: 3889.435 (diff: -29.752)
Loss: 3887.420 (diff: -2.015)
Loss: 3884.883 (diff: -2.537)
Loss: 3838.813 (diff: -46.070)
Loss: 3758.045 (diff: -80.768)
Loss: 3748.085 (diff: -9.960)
End step: 3748.085
Changing equivalences...
Start step: 3748.085
Loss: 3748.085 (diff: -0.000)
Loss: 3747.398 (diff: -0.687)
Loss: 3745.426 (diff: -1.971)
Loss: 3745.426 (diff: -0.000)
Loss: 3651.994 (diff: -93.433)
Loss: 3650.981 (diff: -1.013)
Loss: 3641.244 (diff: -9.737)
Loss: 3627.691 (diff: -13.552)
Loss: 3604.974 (diff: -22.718)
Loss: 3592.806 (diff: -12.167)
Loss: 3592.806 (diff: -0.000)
End step: 3592.806
Changing equivalences...
Start step: 3592.805
Loss: 3587.610 (diff: -5.195)
Loss: 3576.307 (diff: -11.303)
Loss: 3560.605 (diff: -15.701)
Loss: 3546.579 (diff: -14.026)
Loss: 3546.579 (diff: -0.000)
End step: 3546.579
Changing equivalences...
Start step: 3546.595
Loss: 3546.595 (diff: -0.000)
Loss: 3543.616 (diff: -2.979)
Loss: 3534.640 (diff: -8.976)
Loss: 3495.193 (diff: -39.447)
Loss: 3469.388 (diff: -25.805)
Loss: 3197.803 (diff: -271.585)
Loss: 3197.803 (diff: -0.000)
End step: 3197.803
Changing equivalences...
Start step: 3197.803
Loss: 3197.803 (diff: -0.000)
Loss: 3193.873 (diff: -3.930)
Loss: 3193.873 (diff: -0.000)
Loss: 3193.873 (diff: -0.000)
Loss: 3193.872 (diff: -0.000)
Loss: 3123.632 (diff: -70.240)
Loss: 3123.632 (diff: -0.000)
End step: 3123.632
Changing equivalences...
Start step: 3123.632
Loss: 3123.632 (diff: -0.000)
Loss: 3123.343 (diff: -0.289)
Loss: 3123.343 (diff: -0.000)
End step: 3123.343
Changing equivalences...
Start step: 3123.343
Loss: 3123.343 (diff: -0.000)
End step: 3123.343
No significantly better loss found 1/3.
Changing equivalences...
Start step: 3123.343
End step: 3123.343
No significantly better loss found 2/3.
Changing equivalences...
Start step: 3123.343
End step: 3123.343
No significantly better loss found 3/3.
Optimisation finished in 17.20 seconds with 10 loss evaluations.
hc_result contains several objects:
the best topology
a label_mapping to convert the tree back to a Newick with taxon labels
the best score (here, the negative log-likelihood of the best tree)
all scores obtained during the optimisation

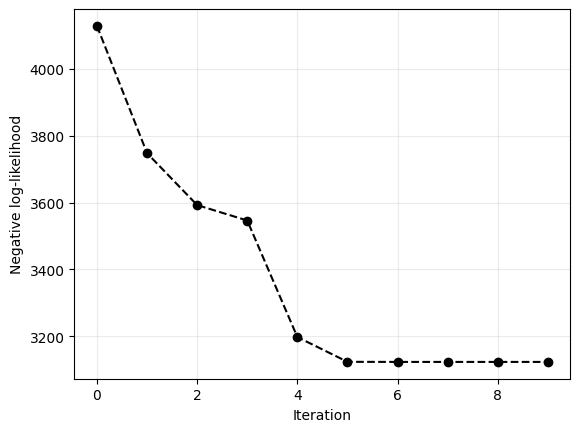

plt.plot(hc_result.scores, "ko--")
plt.xlabel("Iteration")
plt.ylabel("Negative log-likelihood")
plt.grid(alpha=0.25)
plt.show()
hc_newick = p2v.to_newick(hc_result.best)
hc_newick_with_taxa = apply_label_mapping(hc_newick, hc_result.label_mapping)
print(Tree(hc_newick_with_taxa))
╭╴A/Denmark/107/2003|EU103941|2003|Denmark||H3N2/1-1409
│ ╭╴A/Canterbury/58/2000|CY009150|09/05/2000|New_Zealand||H3N2/8-1416
│ │ ╭╴A/DaNang/DN434/2008|CY104616|11/11/2008|Viet_Nam||H3N2/4-1412
│ │ │ ╭─┬╴A/Oregon/15/2009|GQ895004|06/25/2009|USA|08_09|H3N2/1-1409
╭─┤ │ │ │ ╰╴A/Hong_Kong/H090_695_V10/2009|CY115546|07/10/2009|Hong_Kong||H3N2/8-1416
│ │ │ │ │ ╭─┬╴A/Nebraska/15/2011|KC892583|12/15/2011|USA|11_12|H3N2/1-1409
│ │ │ ╭─┤ │ │ ╰╴A/Maryland/21/2011|KC892695|12/26/2011|USA|11_12|H3N2/1-1409
│ │ │ │ │ ╭─┤ ╭─┤ ╭─┬╴A/Maryland/03/2013|KF789621|02/10/2013|USA|12_13|H3N2/1-1409
│ ╰─┤ │ │ │ │ │ │ ╭─┤ ╰╴A/New_Hampshire/12/2012|KF790252|11/08/2012|USA|12_13|H3N2/1-1409
│ │ │ │ │ │ ╭─┤ ╰─┤ ╰─┬╴A/Boston/DOA2_107/2012|CY148382|11/01/2012|USA|12_13|H3N2/1-1409
│ │ ╭─┤ ╰─┤ │ │ │ │ ╰╴A/Hawaii/02/2013|KF789866|05/28/2013|USA|12_13|H3N2/1-1409
─┤ │ │ │ │ ╰─┤ │ ╰╴A/Indiana/03/2012|KC892731|04/03/2012|USA|11_12|H3N2/1-1409
│ │ │ │ │ │ ╰╴A/Peru/PER247/2011|CY162234|08/26/2011|Peru||H3N2/8-1416
│ │ ╭─┤ │ │ ╰╴A/Minab/797/2011|KC865620|12/24/2011|Iran||H3N2/20-1428
│ │ │ │ │ ╰╴A/Boston/57/2008|CY044710|02/24/2008|USA|07_08|H3N2/1-1409
│ ╰─┤ │ ╰╴A/Managua/25/2007|CY032439|06/27/2007|Nicaragua||H3N2/1-1409
│ │ ╰╴A/Mexico/InDRE940/2003|CY100628|2003|Mexico||H3N2/15-1423
│ ╰╴A/New_York/182/2000|CY001279|02/18/2000|USA|99_00|H3N2/1-1409
╰╴A/Scotland/76/2003|CY088128|11/03/2003|United_Kingdom|03_04|H3N2/1-1409
2. GradME#
GradME constitutes an attempt to perform continuous phylogenetic inference using gradient descent and balanced minimum evolution (for a review, see here), thus implying that GradME tries to minimise the path length of the tree.
It involves a continuous tree representation based on ordered Phylo2Vec trees, with a matrix W of shape (\(n-1, n-1\)) for a tree of \(n\) leaves. For \(i \in [0, n-1], j \in [0, n-1], W_{ij} = P(v_i = j)\), where \(v\) a Phylo2Vec vector.
Given the Phylo2Vec constraints, \(W\) is a lower-triangular, stochastic matrix (row sum to 1). The most likely single tree from W can be obtained by take the column-wise argmax: v = W.argmax(1).
To improve search, GradME also relies on Queue Shuffle, a taxon reordering algorithm to allow for full tree space exploration.
For more details, see the paper: https://doi.org/10.1093/gbe/evad213
From an implementation point of view, GradME is based on jax and optax. It is thus advised to run it on a GPU to experience speed-ups! The only required argument is model, a substitution model name (as a string).
from phylo2vec.opt import GradME
# To run the GradME optimizer, we need to specify a substitution model.
gradme = GradME(model="F81", solver="adabelief", patience=10, learning_rate=0.1, tol=1e-10, verbose=True, nesterov=True)
gradme_result = gradme.fit(fasta_path)
INFO:2025-09-18 13:43:07,998:jax._src.xla_bridge:749: Unable to initialize backend 'tpu': INTERNAL: Failed to open libtpu.so: libtpu.so: cannot open shared object file: No such file or directory
[2025-09-18 13:43:07,998] Unable to initialize backend 'tpu': INTERNAL: Failed to open libtpu.so: libtpu.so: cannot open shared object file: No such file or directory
16%|█▌ | 16/100 [01:08<05:57, 4.26s/it, Current loss: -2.079899]
Early stopping after 10 iterations without improvement.
Optimisation finished in 70.82 seconds with 17 loss evaluations.
gradme_result contains several objects:
the best topology
a label_mapping to convert the tree back to a Newick with taxon labels
the best score (here, the negative log-likelihood of the best tree)
all scores obtained during the optimisation
the best set of weights (
best_W) corresponding to a probabilistic ordered tree

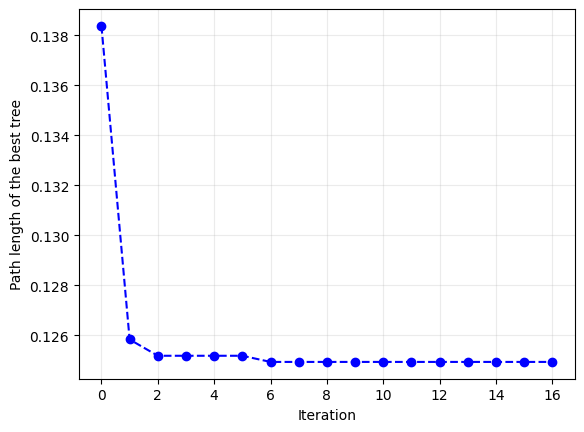

plt.plot(np.exp(gradme_result.scores), "bo--")
plt.xlabel("Iteration")
plt.ylabel("Path length of the best tree")
plt.grid(alpha=0.25)
plt.show()
gradme_newick = p2v.to_newick(np.asarray(gradme_result.best))
gradme_newick_with_taxa = apply_label_mapping(gradme_newick, gradme_result.label_mapping)
print(Tree(gradme_newick_with_taxa))
╭╴A/Boston/57/2008|CY044710|02/24/2008|USA|07_08|H3N2/1-1409
╭─┤ ╭─┬╴A/Oregon/15/2009|GQ895004|06/25/2009|USA|08_09|H3N2/1-1409
│ ╰─┤ ╰╴A/Hong_Kong/H090_695_V10/2009|CY115546|07/10/2009|Hong_Kong||H3N2/8-1416
│ │ ╭╴A/Minab/797/2011|KC865620|12/24/2011|Iran||H3N2/20-1428
│ ╰─┤ ╭╴A/Peru/PER247/2011|CY162234|08/26/2011|Peru||H3N2/8-1416
│ ╰─┤ ╭─┬╴A/Maryland/21/2011|KC892695|12/26/2011|USA|11_12|H3N2/1-1409
╭─┤ ╰─┤ ╰╴A/Nebraska/15/2011|KC892583|12/15/2011|USA|11_12|H3N2/1-1409
│ │ │ ╭╴A/Indiana/03/2012|KC892731|04/03/2012|USA|11_12|H3N2/1-1409
│ │ ╰─┤ ╭╴A/New_Hampshire/12/2012|KF790252|11/08/2012|USA|12_13|H3N2/1-1409
│ │ ╰─┤ ╭─┬╴A/Boston/DOA2_107/2012|CY148382|11/01/2012|USA|12_13|H3N2/1-1409
╭─┤ │ ╰─┤ ╰╴A/Hawaii/02/2013|KF789866|05/28/2013|USA|12_13|H3N2/1-1409
│ │ │ ╰╴A/Maryland/03/2013|KF789621|02/10/2013|USA|12_13|H3N2/1-1409
│ │ ╰╴A/DaNang/DN434/2008|CY104616|11/11/2008|Viet_Nam||H3N2/4-1412
│ │ ╭╴A/Mexico/InDRE940/2003|CY100628|2003|Mexico||H3N2/15-1423
─┤ ╰─┤ ╭─┬╴A/New_York/182/2000|CY001279|02/18/2000|USA|99_00|H3N2/1-1409
│ ╰─┤ ╰╴A/Canterbury/58/2000|CY009150|09/05/2000|New_Zealand||H3N2/8-1416
│ ╰─┬╴A/Scotland/76/2003|CY088128|11/03/2003|United_Kingdom|03_04|H3N2/1-1409
│ ╰╴A/Denmark/107/2003|EU103941|2003|Denmark||H3N2/1-1409
╰╴A/Managua/25/2007|CY032439|06/27/2007|Nicaragua||H3N2/1-1409

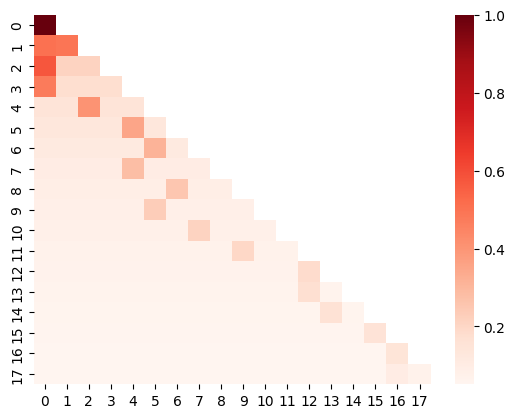

sns.heatmap(
gradme_result.best_W,
cmap="Reds",
mask=np.triu(np.ones_like(gradme_result.best_W, dtype=bool), k=1)
)
<Axes: >
